Refrigerant Dryer (Water Cooled)

Refrigeration dryers are the first choice when it comes to reducing or removing moisture from compressed air. After passing through a refrigeration dryer, water in the compressed air will cool and condense. Dried air will then be discharged with the pressure dew point temperature reaching 2 to 10oC.
The Fusheng FR series refrigeration dryer provides both air-cooled models and water-cooled models. Each type can be further divided to high temperature and low temperature models based on the inlet air temperature demand from the customer end.





Water-cooled Refrigeration Dryer

Unique Air Heat Exchanger with Brass Pipe and Fin Design
Reduces air inlet temperature and increases outlet temperature, preventing piping condensation.

State of the Art Application of Scecondary Condenser on the Air Outlet
Perfectly utilizing outlet cooled air to ensure normal operation even in harsh operational conditions.

Cyclone Type Water Separator + Moisture Isolator
Absolutely free of water.

Stainless Oil-filled Type Instrumentation
Eliminate shock errors caused by vibrations during long distance or rough transportation.

Computerized Control Panel
Pursuing optimal operation with intelligent functions including simple flow chart display and easiest operating.

Evaporator with Flange Connection
Easy and convenient maintenance.

Additional Condenser Bypass Valve
Convenient on-site cleaning.

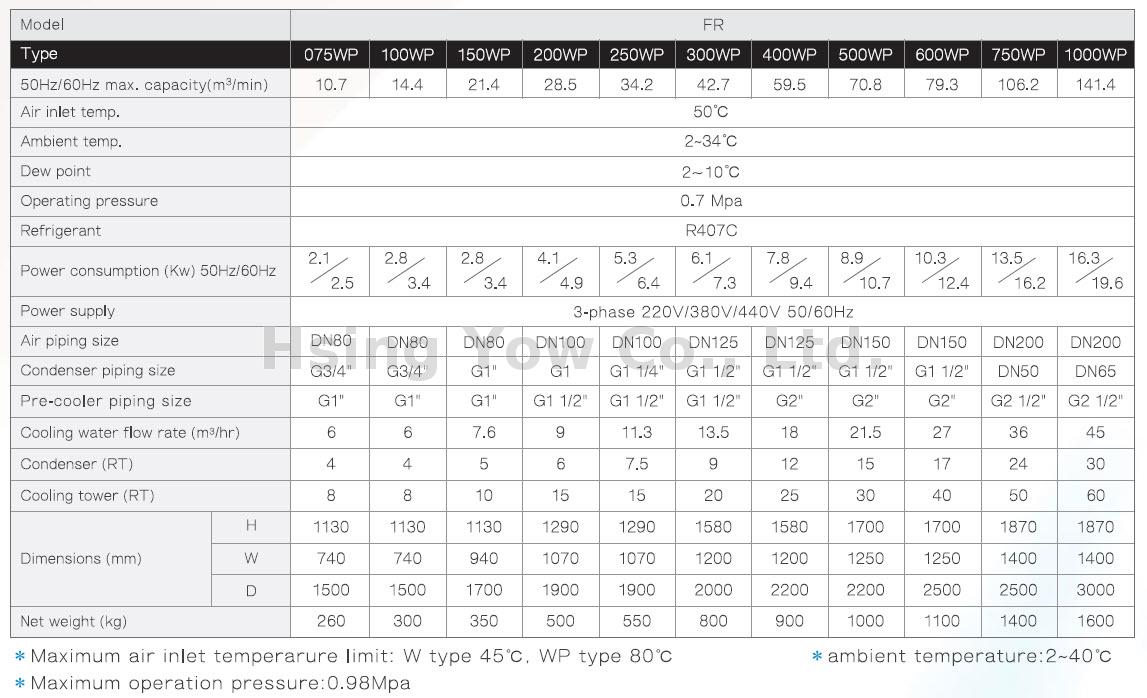

Specification

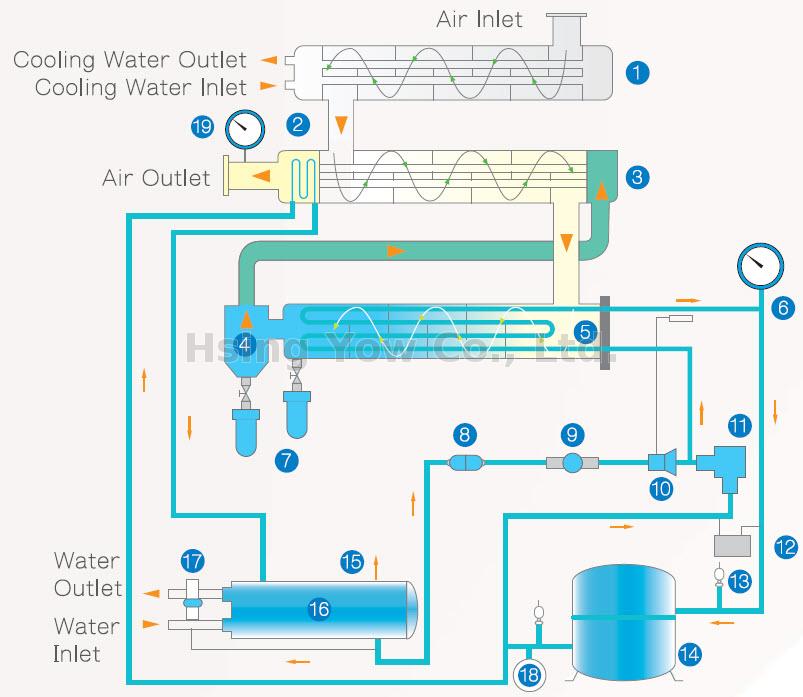

① Pre-cooler (WP type only)                ⑪ Hot gas bypass valve
② Secondary condenser                      ⑫ Pressure head switch
③ Air heat exchanger                           ⑬ Service/Inflow valve
④ Water separator                                ⑭ Compressor
⑤ Evaporator                                        ⑮ Relief valve
⑥ Pressure gauge (dew point)              ⑯ Water-cooled condenser
⑦ Condensate drain valve                    ⑰ Water flow regulating valve
⑧ Line filter                                           ⑱ Pressure gauge (refrigerant)
⑨ Sight glass                                        ⑲ Pressure gauge (air)
⑩ Expansion valve

Specification


Air-cooled Refrigeration Dryer Product Selection




Dryer capacity varies with operating pressure, inlet temperature and cooling water temperature. Using drying capacity requirement, select dryer model from table, ensuring the dryer model selected is equal to or greater than your dryer capacity requirement. Calculate drying capacity required following the example below.

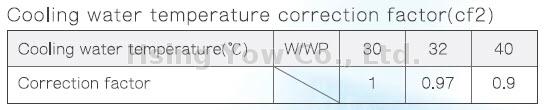

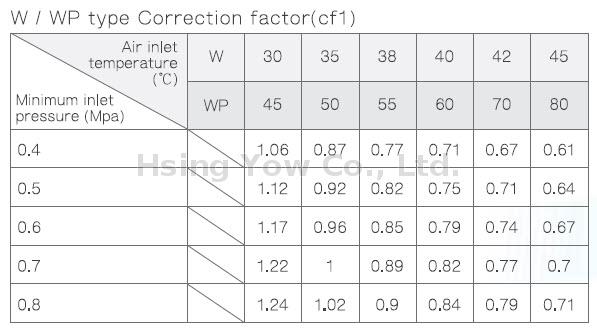

Minimum drying capacity requirements = Inlet flow requirement ÷ cf1 ÷ cf2

For example:
Inlet flow requirement is 28.5m3/min
Operating pressure is 0.8MPa, inlet temperature is 55°C and cooling water  temperature is 32°C.
Minimum drying capacity requirements = 28.5m3/min ÷ 0.9 ÷ 0.97 = 32.66m3/min, the correct dryer model is FR250WP.
